| Size | Weight | Part # |
|---|---|---|
| 2" (1 3/4" OD) | 5.25lbs | 300-3165 |
| 3" (2 3/4" OD) | 5.95lbs | 300-3166 |
| 4" (3 3/4" OD) | 6.50lbs | 300-3167 |
- Clamping ring bolts down into compression fit mounting ring.
- Stainless steel screw fastens die-cast aluminum strainer.
- No vertical studs to interfere with membrane.

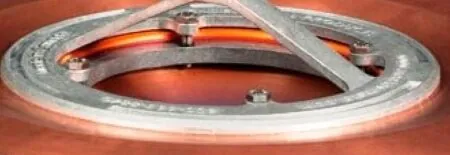

- Lower clamping ring mount is embedded in the drain bowl. No bolts penetrating drain body.
- Cast aluminum strainer.
- All fasteners are stainless steel.
- Stocked in insert sizes 2″ (51mm), 3″ (76mm)and 4″ (102mm).
- Listed to meet Canadian and U.S. standards by QAI. Meets CSA B79 and ASME A112.6.4.
- For complete seal assurance this product works best when used with Menzies Blue Drain Seal.
- Also available as No Hub outlet model.
- Also available in TPO Direct Weld™.
- Longer pipes available.
011018
